GSD400BZ

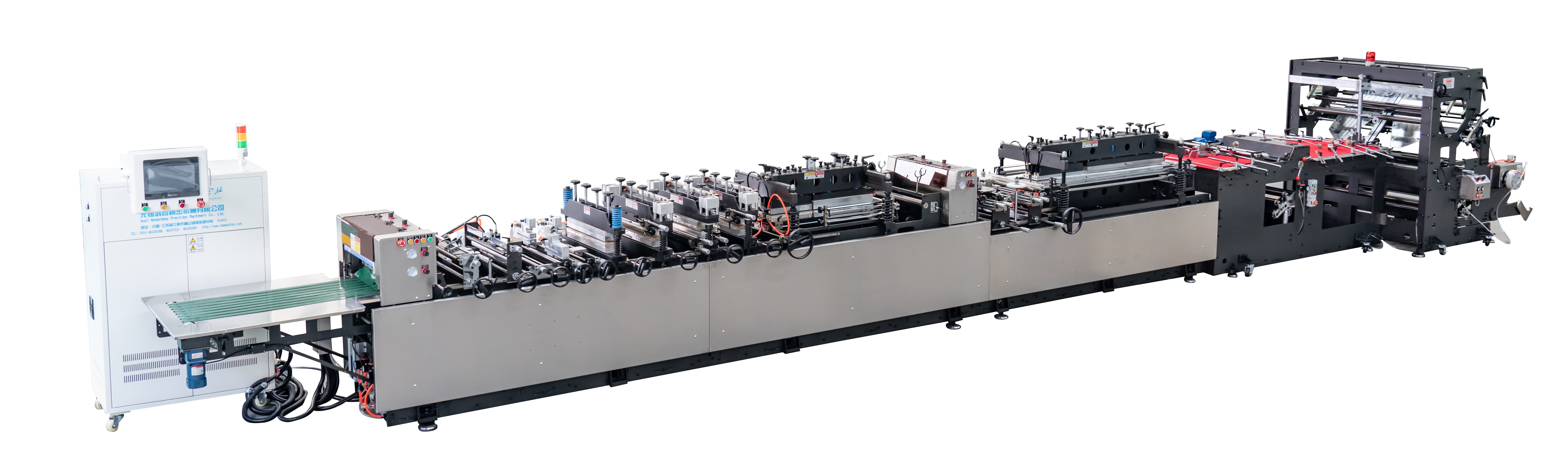

GSD-400BZ全自动高速中封机规格参数

规格参数 specifications

制袋形式

Function

中封袋、偏封袋、四边封袋

Centre seal, side seal, four side seal

膜卷尺寸

Film size range

宽度:100~820mm; 直径:Ø800mm(纸芯直径: Ø76mm)

Width:   100~820mm; dimension: Ø800mm( paper core: 3 inch )

制袋速度

Production speed

中封袋:35~160段/分;偏封袋、四边封袋35~140段/分。

※实际制袋速度受制袋材料和制袋长度等因素影响。

Centre   seal: 35-160CPM

Side   seal, four side seal: 35-140CPM

pouch making capacity depends   on film material and finished bag length, etc.

制袋尺寸

Pouch size

制袋宽度:50~400mm; 制袋长度:50~300mm(超出300mm可使用倍送功能)

Width:   50~400mm; length: 50-300mm( using skip mode to increase the bag length)

插边深度:20~70mm

Gusset   depth: 20~70mm
